HARD WORK MEETS SUPERIOR EFFICIENCY.

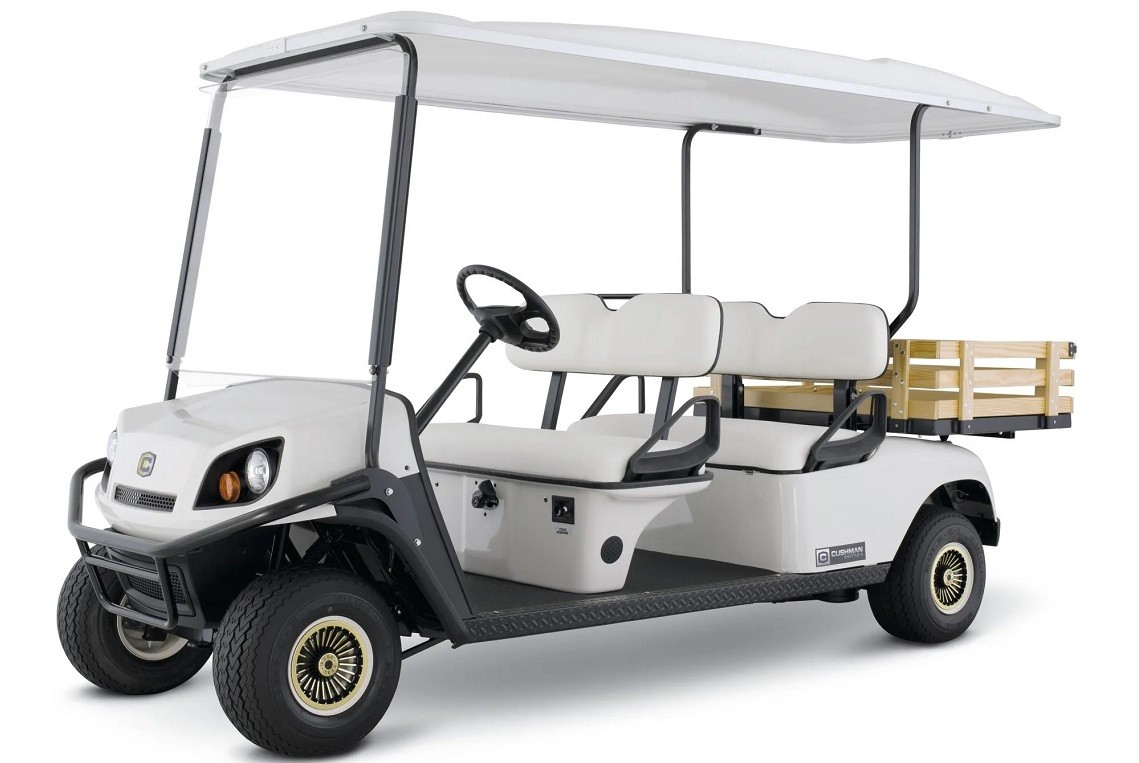

Designed for multi-taskers, the Shuttle 4 showcases four forward facing seats and a spacious cargo bed, making it the perfect vehicle to transport people and equipment through your facility.
SPECIFICATION:
BODY & CHASSIS
FRAME Welded Steel with E-Coat & DuraShield™ Powder Coat
BODY & FINISH Injection Molded TPO
COLOR BRIGHT WHITE
DIMENSIONS
OVERALL LENGTH 343 cm
OVERALL WIDTH 123 cm)
OVERALL HEIGHT 123 cm (w/o Roof) / 183 cm (w/ Struts & Roof)
WHEEL BASE 93.5 in (237 cm)
WHEEL TRACK 34.2 in (87 cm) Front / 38.0 in (97 cm) Rear
GROUND CLEARANCE 3.9 in (9.8 cm)
CARGO DECK CAPACITY 23m3
CARGO DECK MATERIAL Wood stake sides
POWER
POWER SOURCE 56.7V Li-Ion Battery
HORSEPOWER (KW) 14.9 HP (11.1 kW)
ELECTRICAL SYSTEM 48V Primary, 12V Auxiliary
BATTERY (QTY/TYPE) 56.7V Li-Ion Composite Module + Cell Model
BATTERY CHARGER 56.7V, B11W World charger, 3 M charging cord
KEY OR PEDAL START Pedal
DRIVE TRAIN Motor Shaft Direct Drive
TRANSAXLE Differential w/ Helical Gears
GEAR SELECTION Dash Mount Forward-Neutra-Reverse / Key Switch
REAR AXLE RATIO 16.99:1
PERFORMANCE
SEATING CAPACITY 4-Person
WEIGHT W/O BATTERIES 907 lb
CURB WEIGHT 988 lb
VEHICLE LOAD CAPACITY 1200 lb (544 kg)
OUTSIDE CLEARANCE CIRCLE 25.5 ft (7.8 m)
SPEED 14.9 mph ± 0.5 mph (24.0 kph ± 0.8 kph) (High Speed) /
12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) (Low Speed) / 16.5 mph
STEERING & SUSPENSION
STEERING Self-Compensating Rack and Pinion
SUSPENSION Leaf Springs w/ Hydraulic Shock Absorbers
SERVICE BRAKE Rear Wheel Mechanical Self-Adjusting Drum
PARKING BRAKE Self-Compensating, Single-Point Engagement
TIRES (FRONT & REAR) 18 x 8.50 - 8 (4 Ply Rated)
CUSHMAN SHUTTLE 4 ELITE VEHICLE CONFIGURATION:
- TIRES HOLE – N -ONE 18 X 8.50 – 8
- SEAT 4 PASSENGER - OYSTER
- BATTERY ELITE 4.2 TWIN PACK
- CHARGER - ELITE WORLD, 3M CORD
- HEADLIGHTS
- HORN
- DC/CD CONVERTER
- GAUGE: STATE OF CHARGE, HOURMETER
- USB PORT, DUAL
- BRUSHGUARD
- LIMITED SLIP DIFFERENTIAL
- WINDSHIEL SPLIT
- SUNCANOPY 116`` TAN
