FOR SALE - CUSHMAN SUTTLE 4 ELITE ELECTRIC

FOR SALE OR RENT

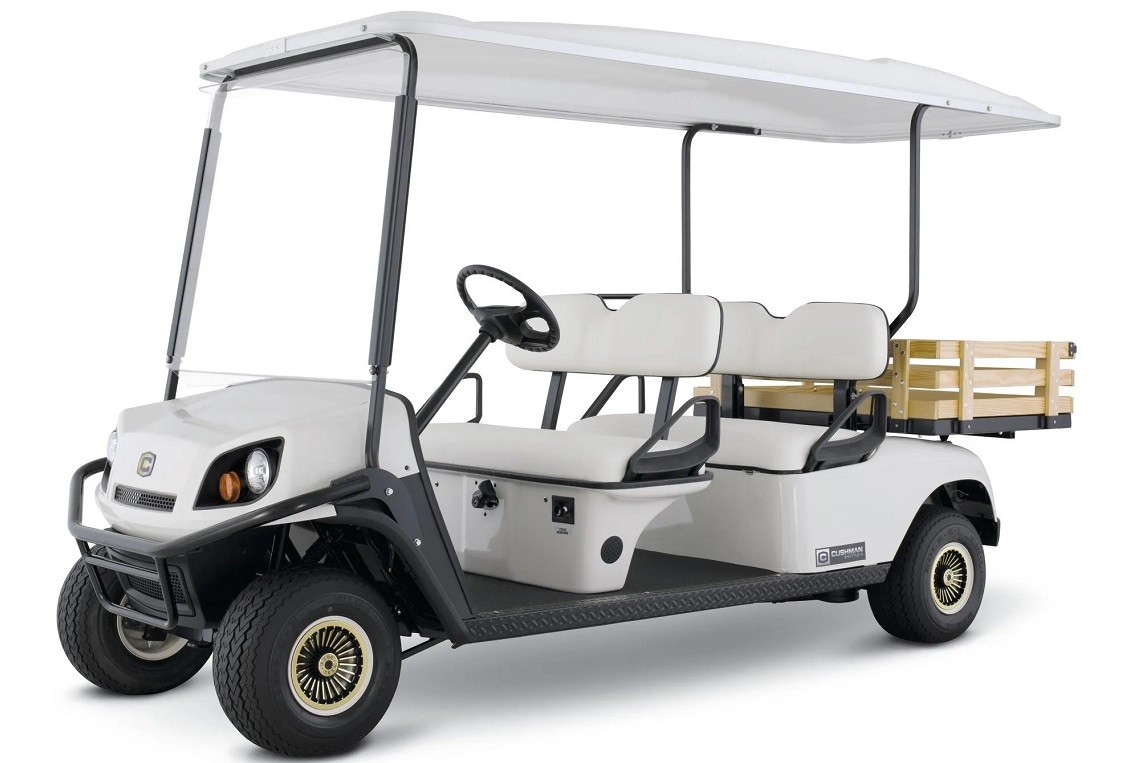

CUSHMAN SUTTLE 4 ELITE ELECTRIC

Contact phone: 99 545485

HARD WORK MEETS SUPERIOR EFFICIENCY.

Designed for multi-taskers, the Shuttle 4 showcases four forward facing seats and a spacious cargo bed, making it the perfect vehicle to transport people and equipment through your facility.

SPECIFICATION:

BODY & CHASSIS

FRAME                                                   Welded Steel with E-Coat & DuraShield™ Powder Coat

BODY & FINISH                                     Injection Molded TPO

COLOR                              BRIGHT WHITE

DIMENSIONS

OVERALL LENGTH                                 343 cm

OVERALL WIDTH                                  123 cm)

OVERALL HEIGHT                                 123 cm (w/o Roof) / 183 cm (w/ Struts & Roof)

WHEEL BASE                                         93.5 in (237 cm)

WHEEL TRACK                                      34.2 in (87 cm) Front / 38.0 in (97 cm) Rear

GROUND CLEARANCE                         3.9 in (9.8 cm)

CARGO DECK CAPACITY                     23m³

CARGO DECK MATERIAL                    Wood stake sides

POWER

POWER SOURCE                                  56.7V Li-Ion Battery

HORSEPOWER (KW)                            14.9 HP (11.1 kW)

ELECTRICAL SYSTEM                           48V Primary, 12V Auxiliary

BATTERY (QTY/TYPE)                          56.7V Li-Ion Composite Module + Cell Model

BATTERY CHARGER                             56.7V, B11W World charger, 3 M charging cord

KEY OR PEDAL START                          Pedal

DRIVE TRAIN                                         Motor Shaft Direct Drive

TRANSAXLE                                           Differential w/ Helical Gears

GEAR SELECTION                                 Dash Mount Forward-Neutra-Reverse / Key Switch

REAR AXLE RATIO                                16.99:1



PERFORMANCE

SEATING CAPACITY                              4-Person

WEIGHT W/O BATTERIES                   907 lb

CURB WEIGHT                                      988 lb

VEHICLE LOAD CAPACITY                   1200 lb (544 kg)

OUTSIDE CLEARANCE CIRCLE            25.5 ft (7.8 m)

SPEED                                                     14.9 mph ± 0.5 mph (24.0 kph ± 0.8 kph) (High Speed) /

                          12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) (Low Speed) / 16.5 mph

STEERING & SUSPENSION

STEERING                                               Self-Compensating Rack and Pinion

SUSPENSION                                         Leaf Springs w/ Hydraulic Shock Absorbers

SERVICE BRAKE                                    Rear Wheel Mechanical Self-Adjusting Drum

PARKING BRAKE                                   Self-Compensating, Single-Point Engagement

TIRES (FRONT & REAR)                       18 x 8.50 - 8 (4 Ply Rated)



CUSHMAN SHUTTLE 4 ELITE VEHICLE CONFIGURATION:

• TIRES HOLE – N -ONE 18 X 8.50 – 8
• SEAT 4 PASSENGER - OYSTER
• BATTERY ELITE 4.2 TWIN PACK
• CHARGER - ELITE WORLD, 3M CORD
• HEADLIGHTS
• HORN
• DC/CD CONVERTER
• GAUGE: STATE OF CHARGE, HOURMETER
• USB PORT, DUAL
• BRUSHGUARD
• LIMITED SLIP DIFFERENTIAL
• WINDSHIEL SPLIT
• SUNCANOPY 116`` TAN
