FOR SALE OR RENT

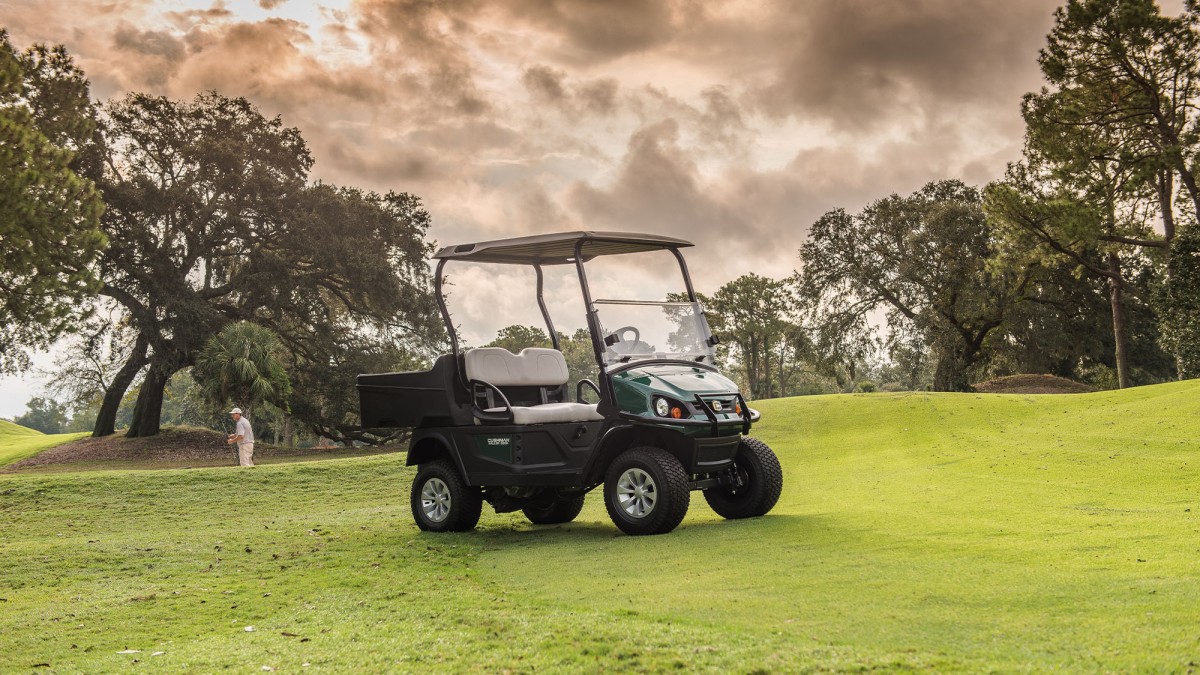

CUSHMAN HAULER 800X ELITE ELECTRIC
Contact phone: 99 545485
SPECIFICATION:
BODY & CHASSIS
FRAME Welded Steel with E-Coat & DuraShield™ Powder Coat
BODY & FINISH Injection Molded TPO
STANDARD COLOR Forest Green
DIMENSIONS
OVERALL LENGTH 280 cm
OVERALL WIDTH 125 cm
OVERALL HEIGHT 188cm with Canopy
WHEEL BASE 166 cm
WHEEL TRACK 94 cm Front / 97 cm Rear
GROUND CLEARANCE 14 cm
CARGO BOX CAPACITY 0.24 m3
CARGO BOX MATERIAL Roto-Molded Polyethylene
POWER
POWER TRAIN 48 Volt A/C drive
HORSEPOWER (KW) 11.7 HP (8.7 kW) Peak
ELECTRICAL SYSTEM 48 Volt
BATTERY (QTY/TYPE) two Lithium ion 48 Volt
KEY OR PEDAL START Pedal
DRIVE TRAIN Motor Shaft Direct Drive
TRANSAXLE Differential w/ Helical Gears
GEAR SELECTION Dash Mount Forward-Neutral-Reverse
REAR AXLE RATIO 16.99:1
PERFORMANCE
SEATING CAPACITY 2-Person (Bench)
CURB WEIGHT 803 lb (364 kg)
VEHICLE LOAD CAPACITY 800 lb (360 kg)
BED LOAD CAPACITY 400 lb (181.4 kg)
TOWING CAPACITY 900 lb (408.2 kg)
OUTSIDE CLEARANCE CIRCLE 18.9 ft (5.8 m)
SPEED 23.3 kph ± 0.8 kph
STEERING & SUSPENSION
STEERING Self-Compensating Rack and Pinion
SUSPENSION Leaf Springs w/ Hydraulic Shock Absorbers
SERVICE BRAKE Rear Wheel Mechanical Self-Adjusting Drum
PARKING BRAKE Self-Compensating, Single-Point Engagement
TIRES (FRONT & REAR) 20 x 8 – 10 (6 Ply Rated)
CUSHMAN HAULER 800 X ELITE VEHICLE CONFIGURATION:
COLOR: FOREST GREEN BODY
STANDARD GREY SEAT
TWO WHEEL MECH BRAKES
DIFFERENTIAL SCUFF GUARD
BRUSH GUARD
COMFORT GRIP STEERING WHEELS
LARGE FENDERS
DC/CD CONVERTER
ELITE LIGHT WORLD CHARGER, 48VDC, 3M CORD
ELITE 2.2 SINGLE PACK
HALOGEN HEADLIIGHTS
GAUGE: SPEED, SOC, HOUR METER
PLASTIC BED BOX (Manual lift)
2IN (5CM) RECEIVER REAR
WINDSHIEL FOLD DOWN
SUNCANOPY BLACK
